Frequency Band：

EU Version

4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)

Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.

Description：

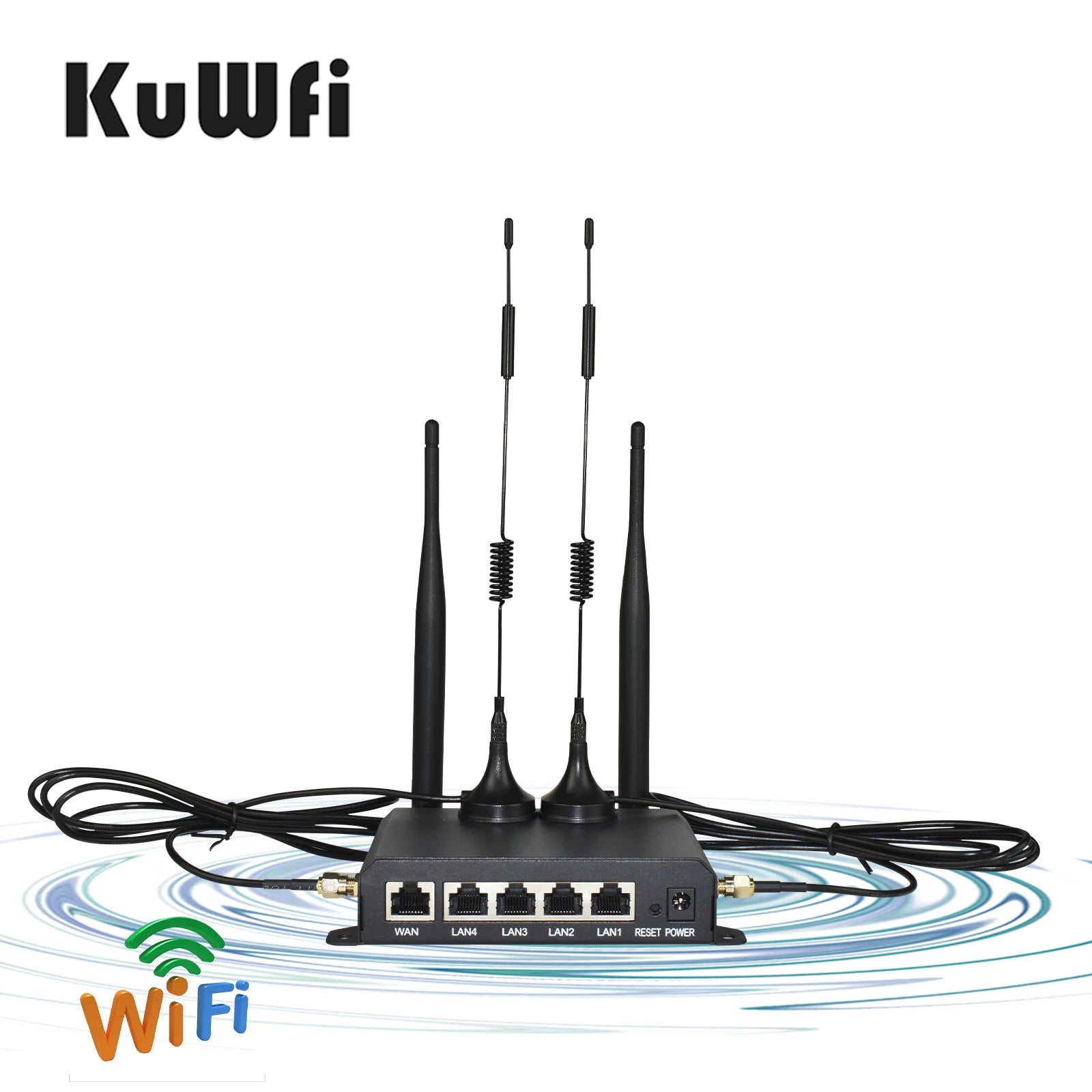

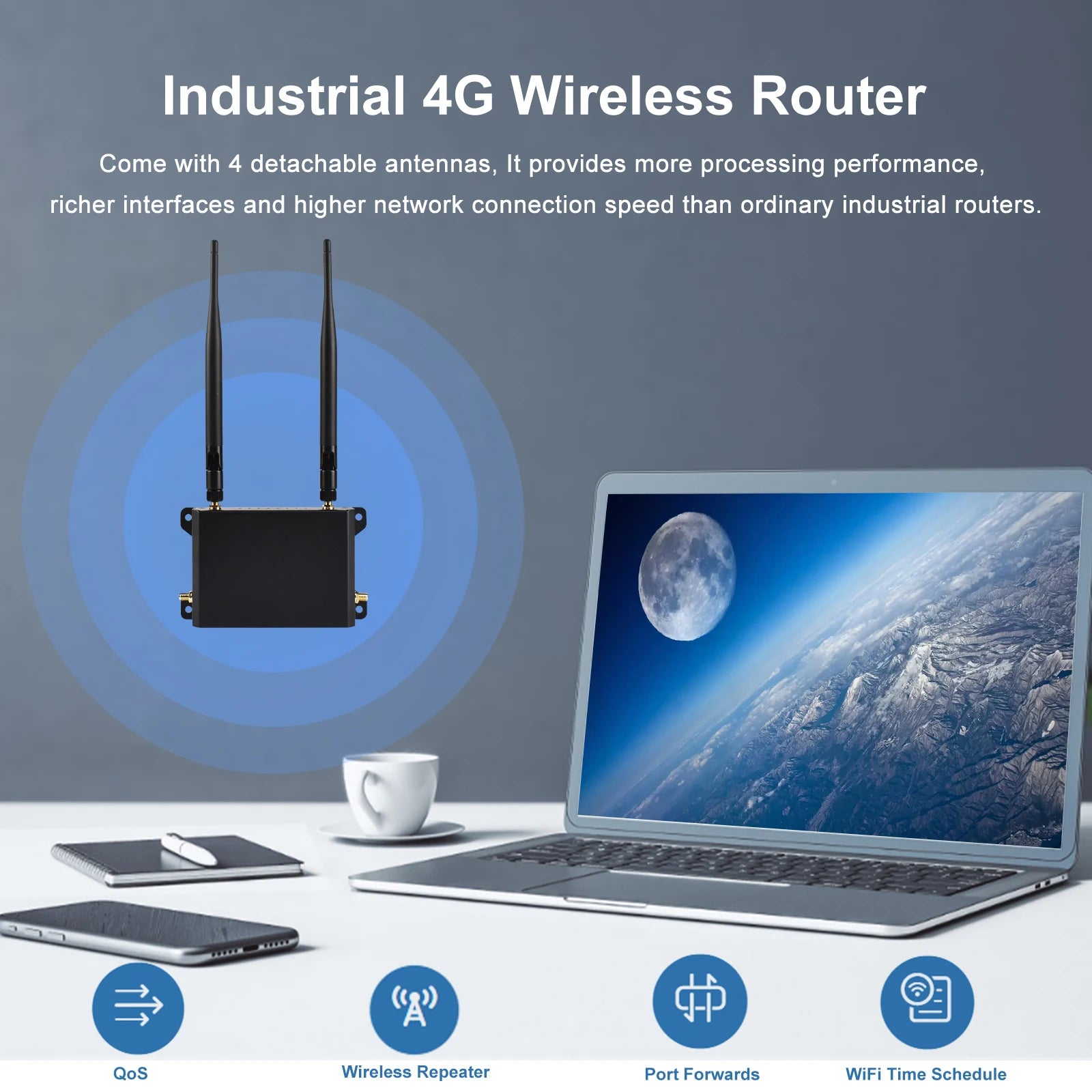

WR181 is an industrial 4G wireless router that integrates multiple functions with metal housing.
It adopts Mediatek MT7628 chipset, comply with IEEE 802.11b/g/n standard, the Wi-Fi data rate is up to 300Mbps. With built-in mini PCI-E slot for 3G/4G modem. It supports FDD-LTE/TDD-LTE worldwide full frequencies up to 150Mbps CAt4 4G LTE download speed. Come with 4 detachable antennas, It provides more processing performance, richer interfaces and higher network connection speed than ordinary industrial routers. This product is suitable for different application types and scenarios, such as intelligent parking lot, intelligent transportation, smart electricity grids, supply chain automation, Intelligent data collection, intelligent building, vending machine, video surveillance etc.

Features:

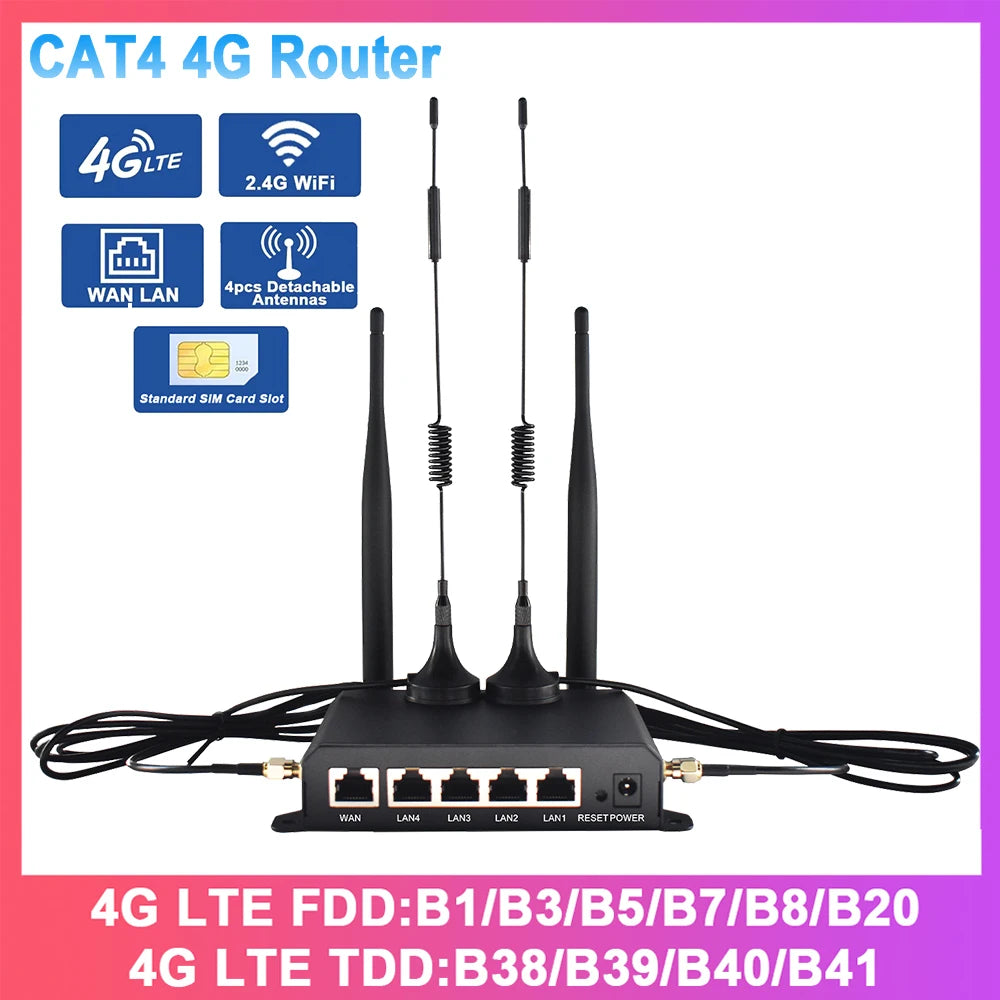

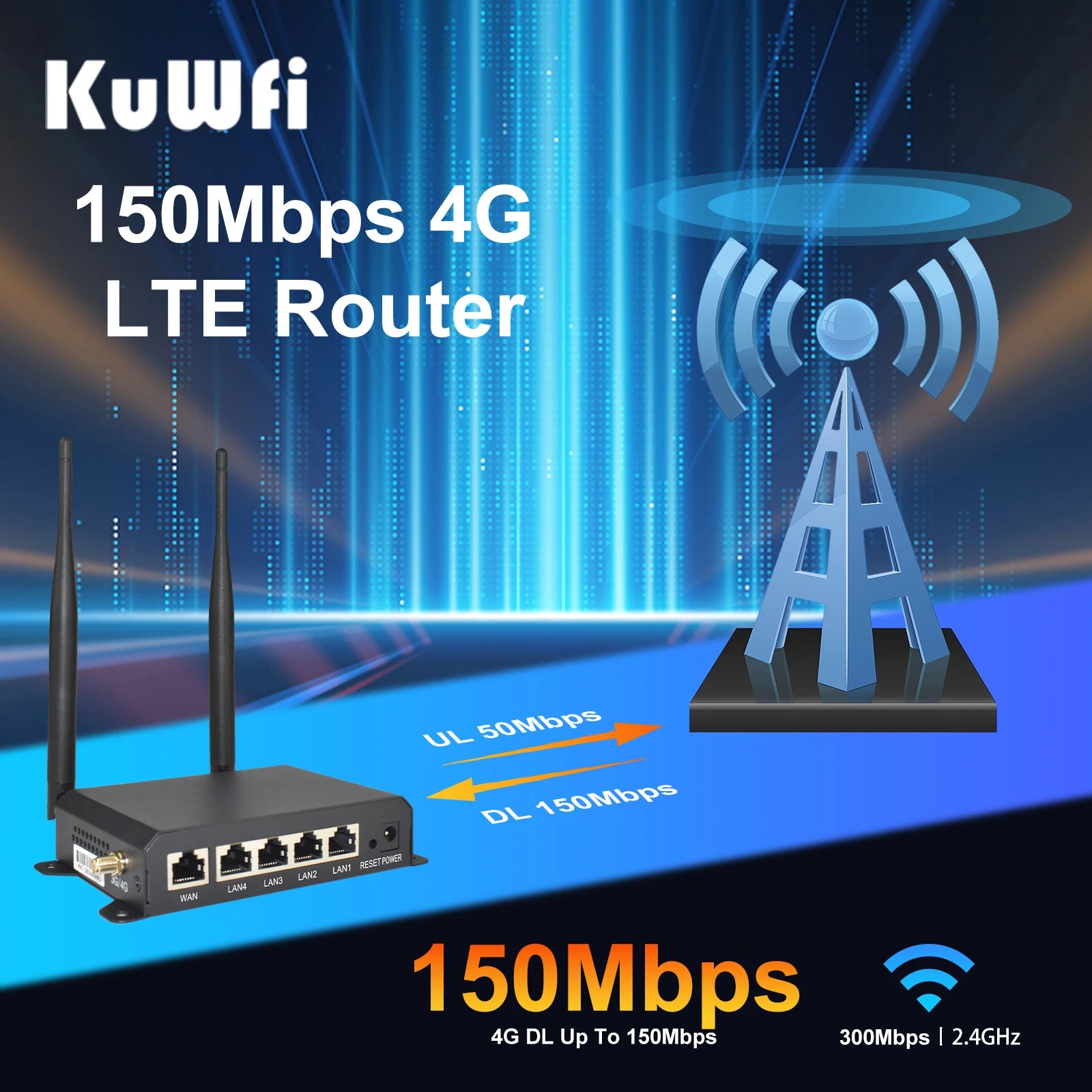

CAT4 150Mbps 4G LTE Router

The 4G CPE Router provides you with stable 4G network. Max download speed: 150mbps; max upload speed : 50Mbps. (Since carriers limit speeds, it's normal for you to get less than 150Mbps.).The router is high-performance, cost-effective 4g modem router.

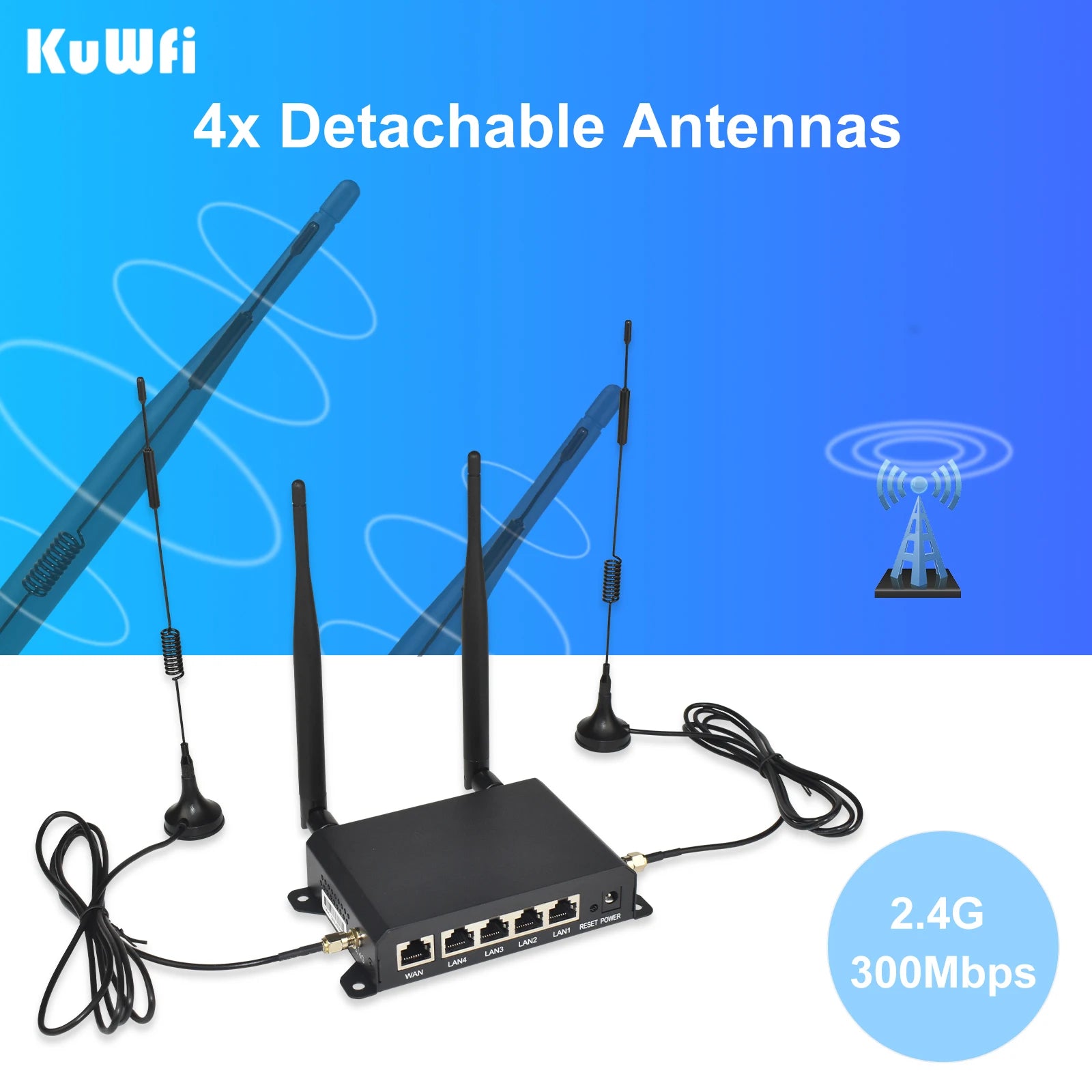

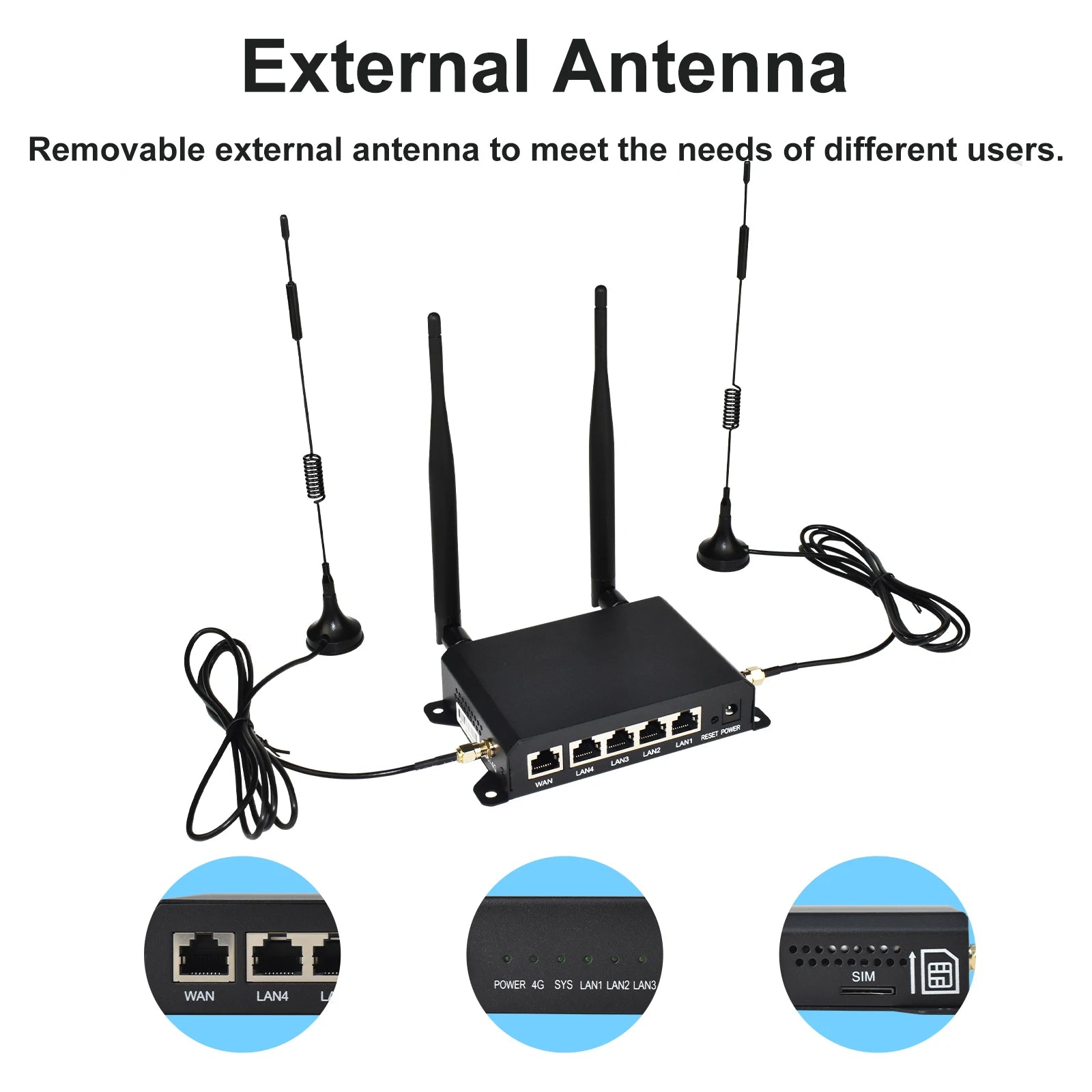

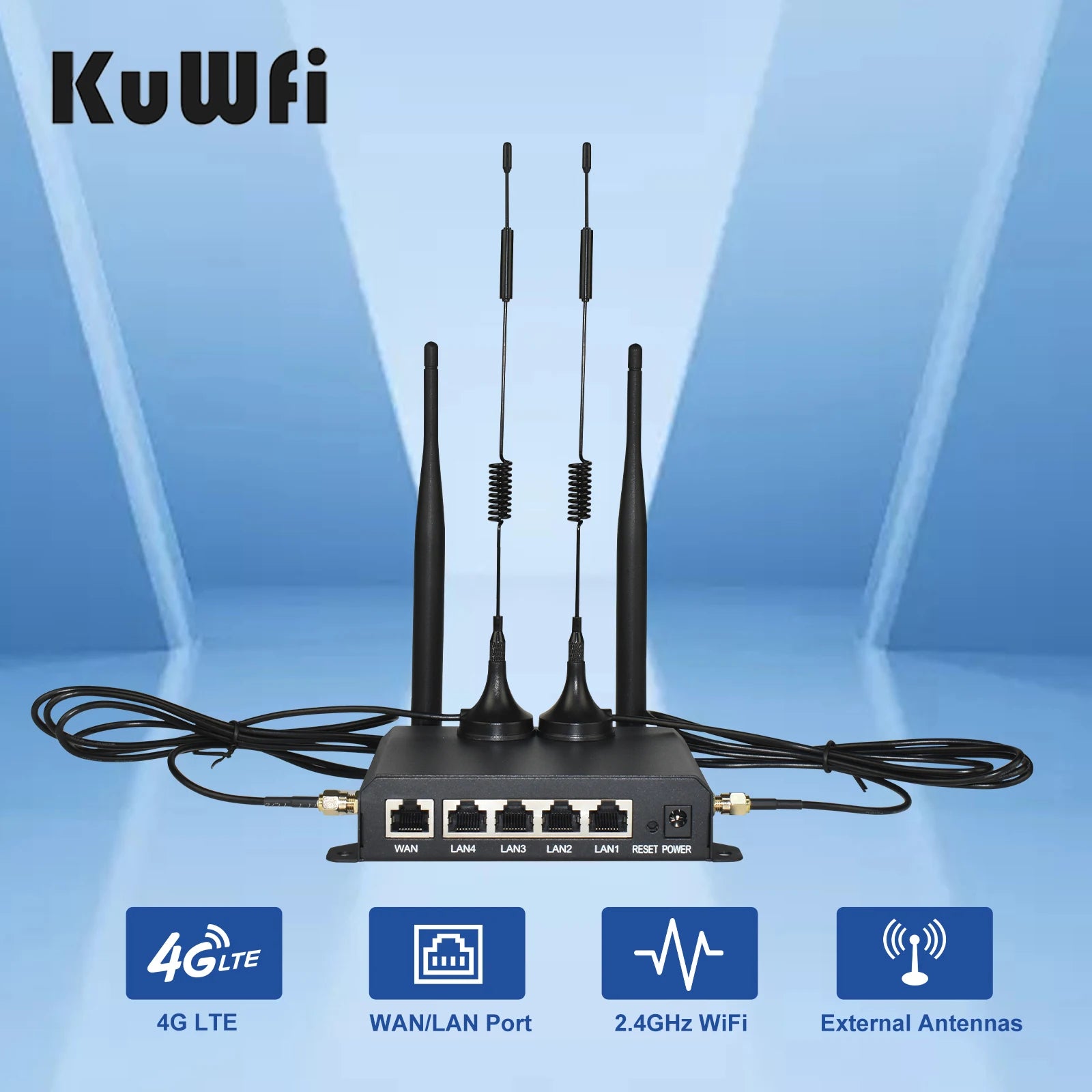

4pcs Detachable High-Gain External Antennas

The 4G Router adopts the design of 4pcs detachable external antennas to improve the stability and coverage of signal transmission.Bring better experience to users.The user can replace the antenna of the same type and interface, but the compatibility of the antenna cannot be guaranteed.

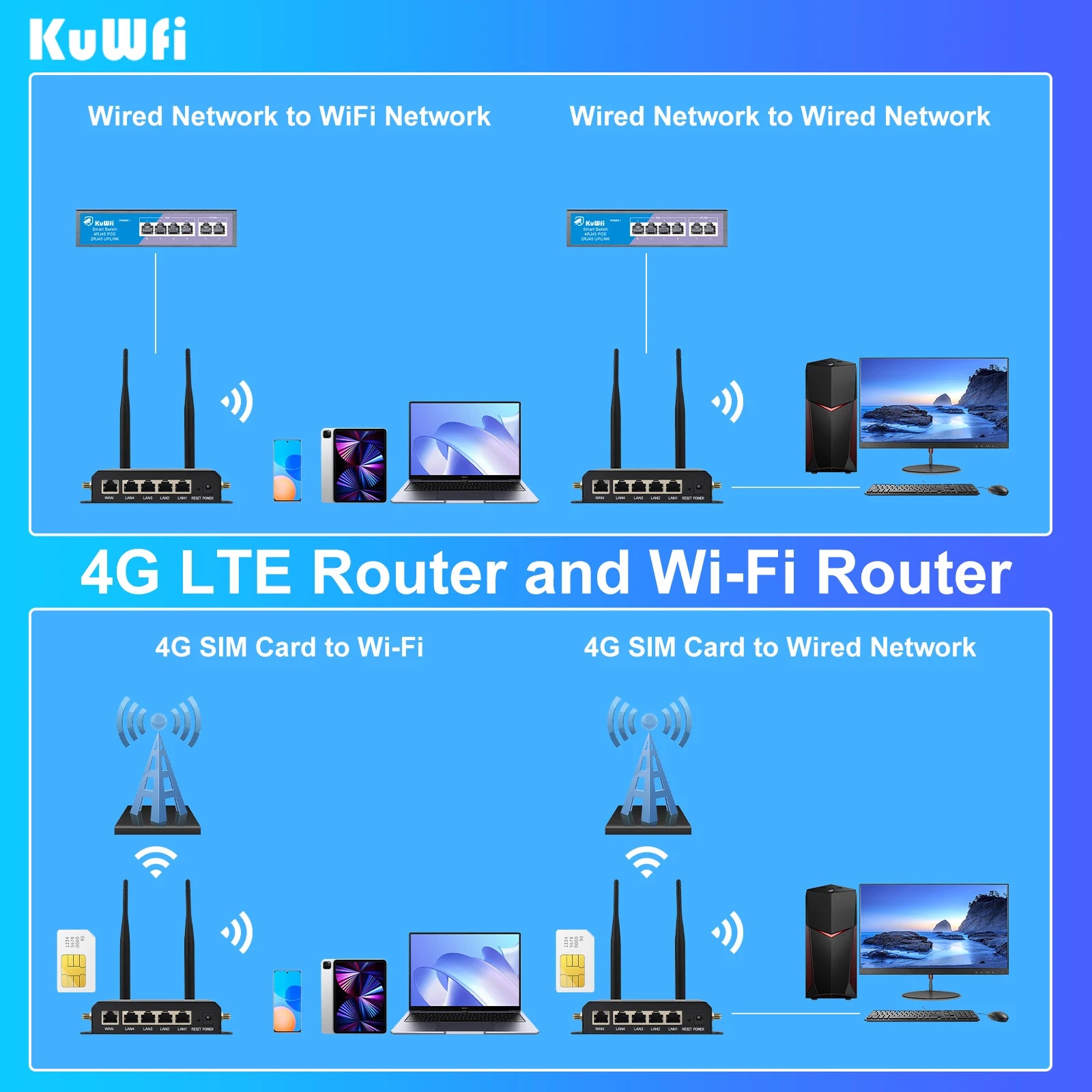

4G Mode / AP Mode / Repeater Mode

Users can use the corresponding mode of the router according to different requirements. Support users to provide network through 4G SIM Card(4G Mode). Users can use upper-layer network devices to provide Internet for the router(AP Mode). It also supports users to use repeater mode to expand the wifi signal of other routers.

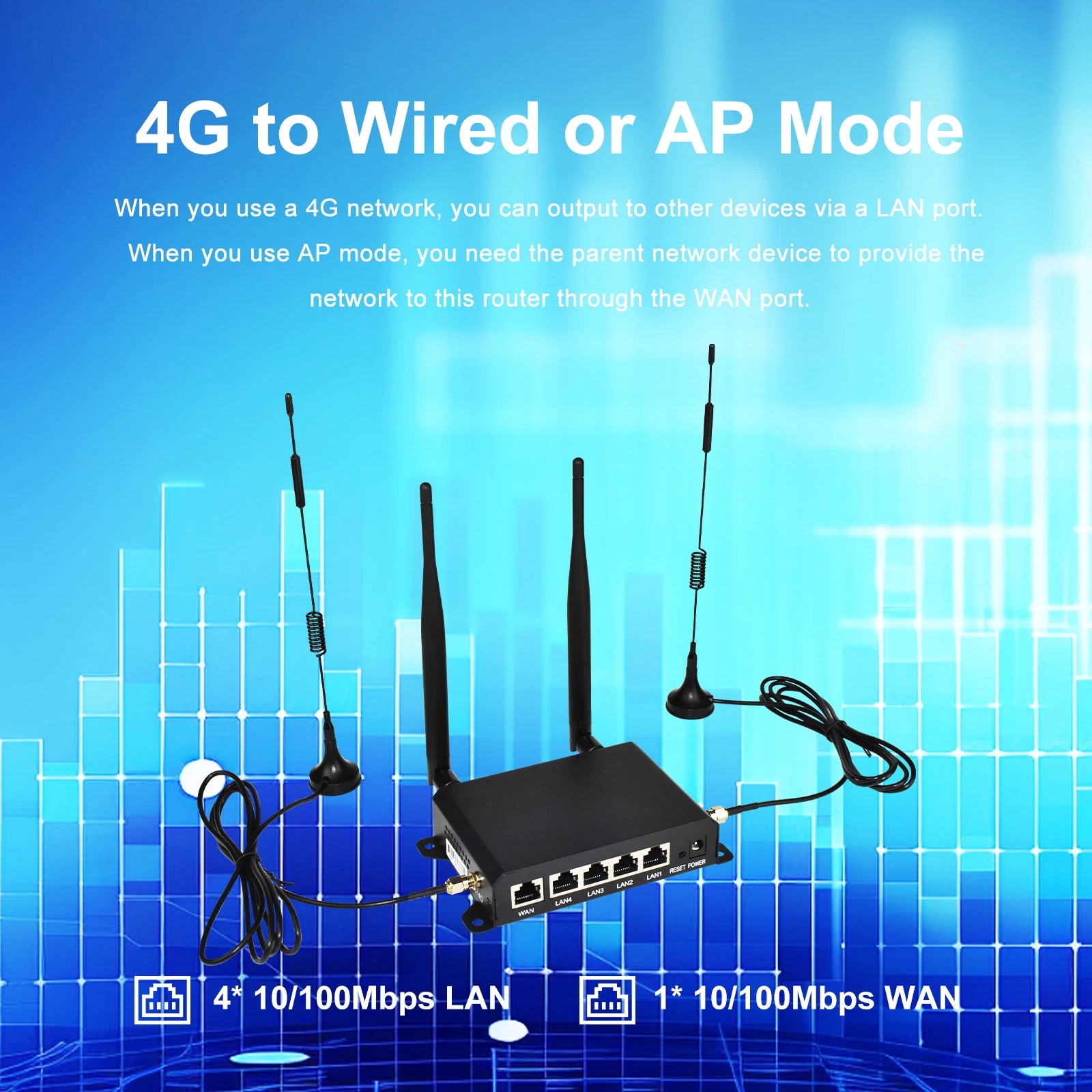

Wireless / Wired Connection

The 4G Router supports the conversion of 4G networks to Wi-fi signals and the output of 4G networks to other network devices through LAN ports.

100Mbps WAN / LAN Port

You can use the WAN port to make the router provide a Wi-Fi signal. At the same time, 4 LAN ports can be used to provide network for other devices.

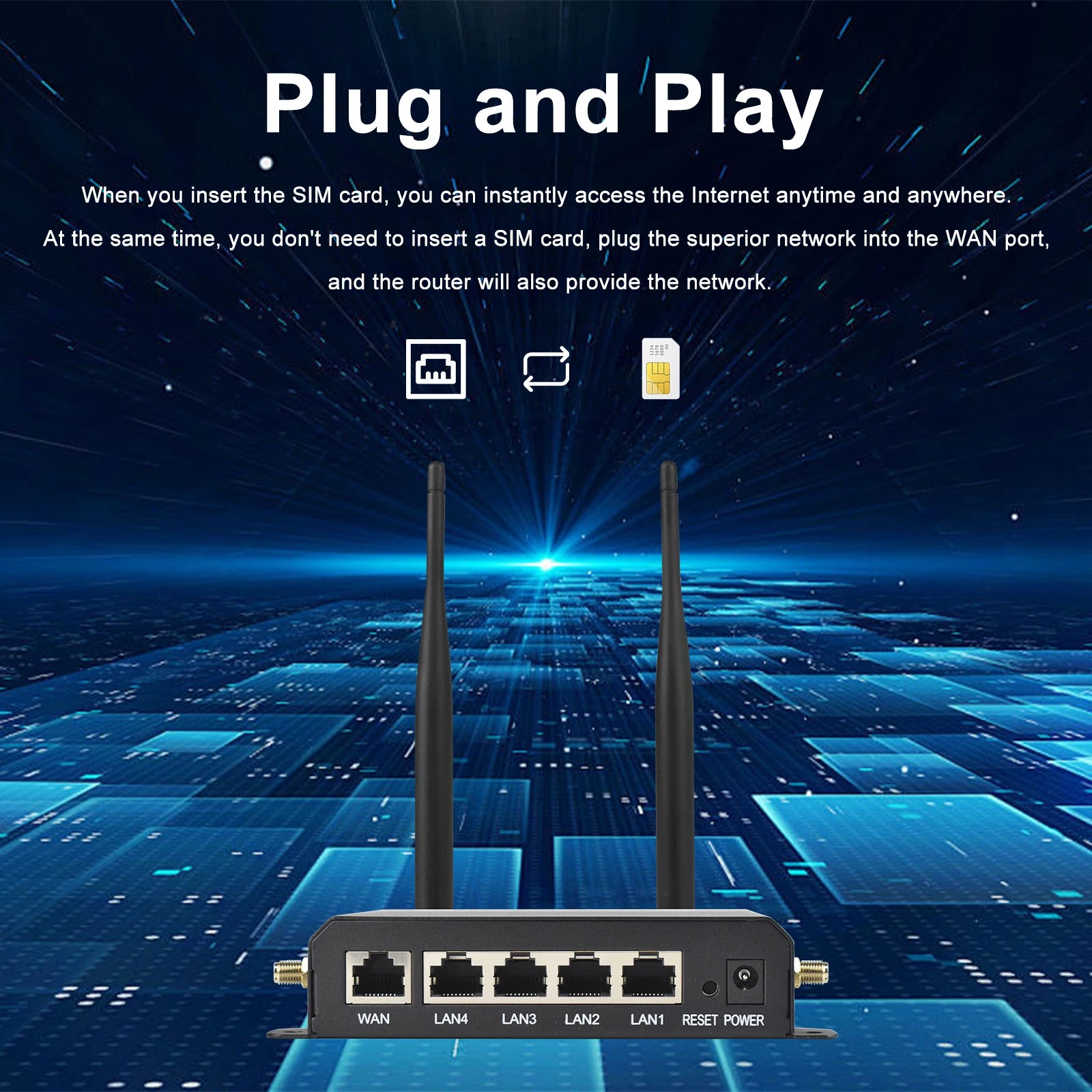

Plug and Play

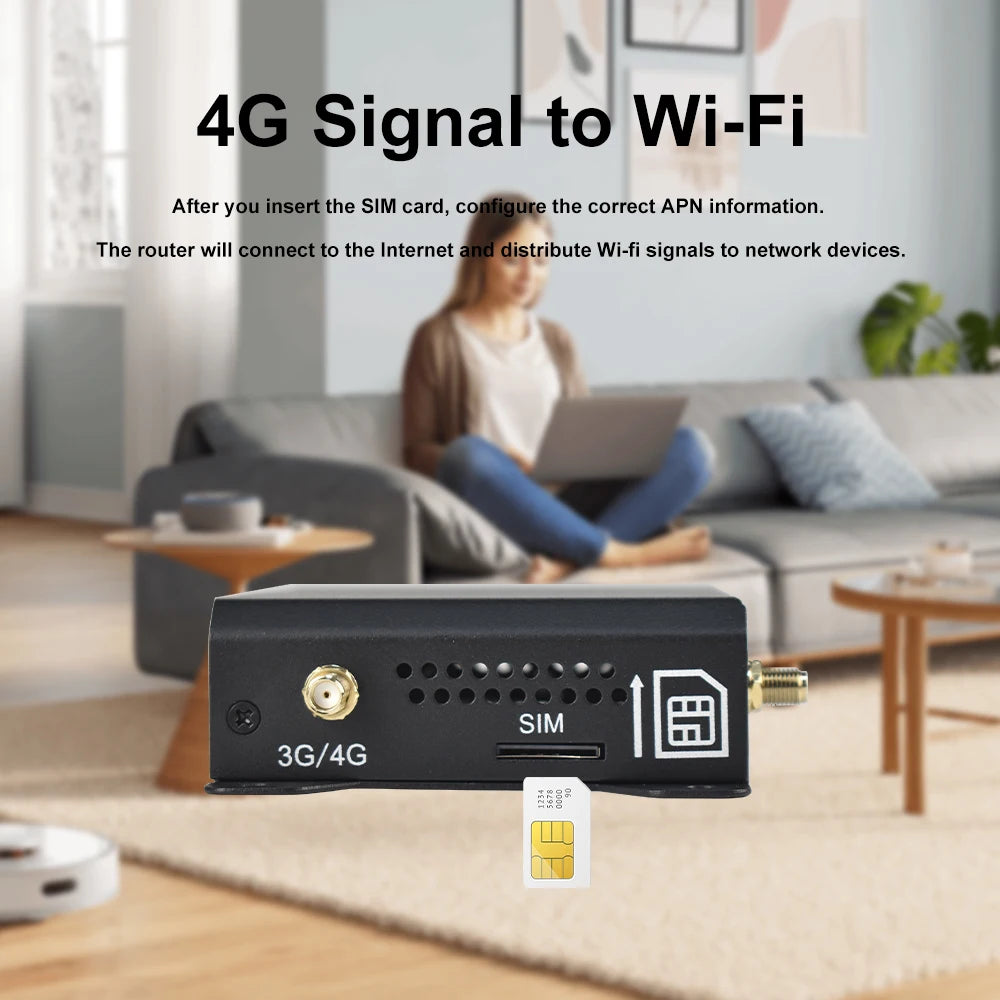

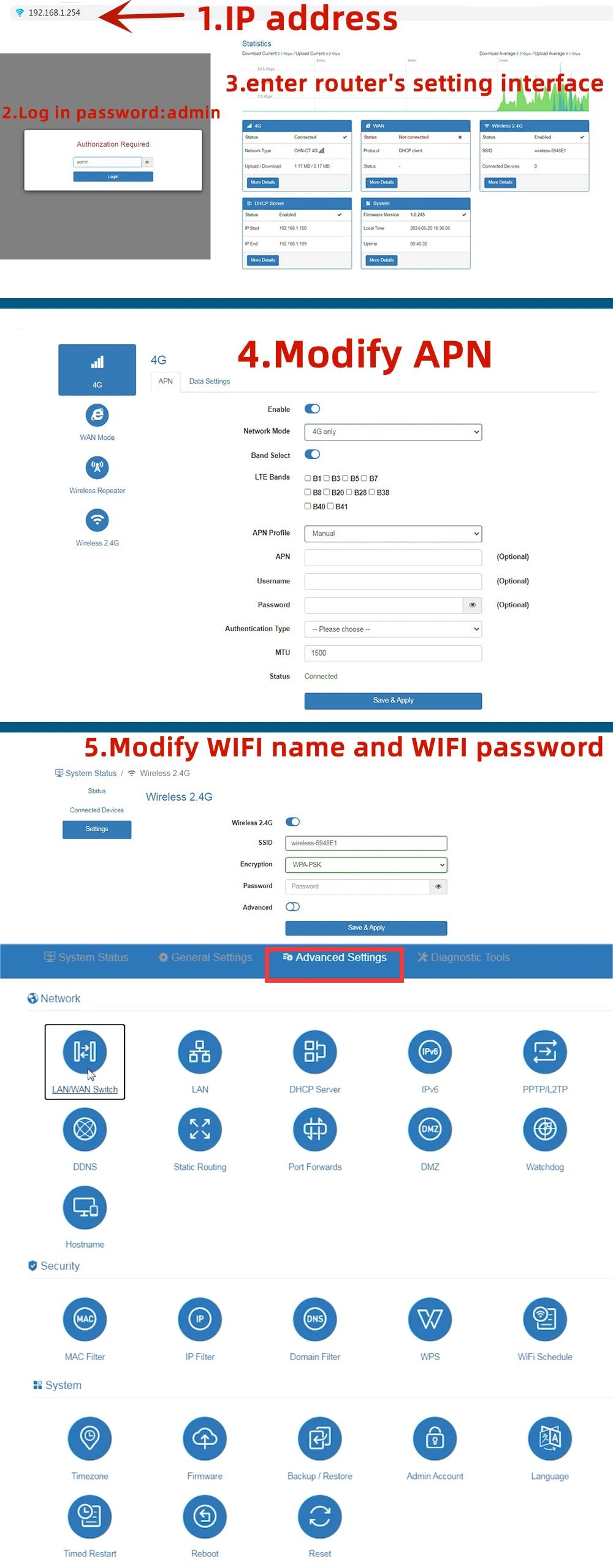

When you insert the SIM card, you can instantly access the Internet anytime and anywhere. (Some SIM cards need to log in to the Web UI of the router and configure the APN information before they can access the Internet.)

Support for multiple devices

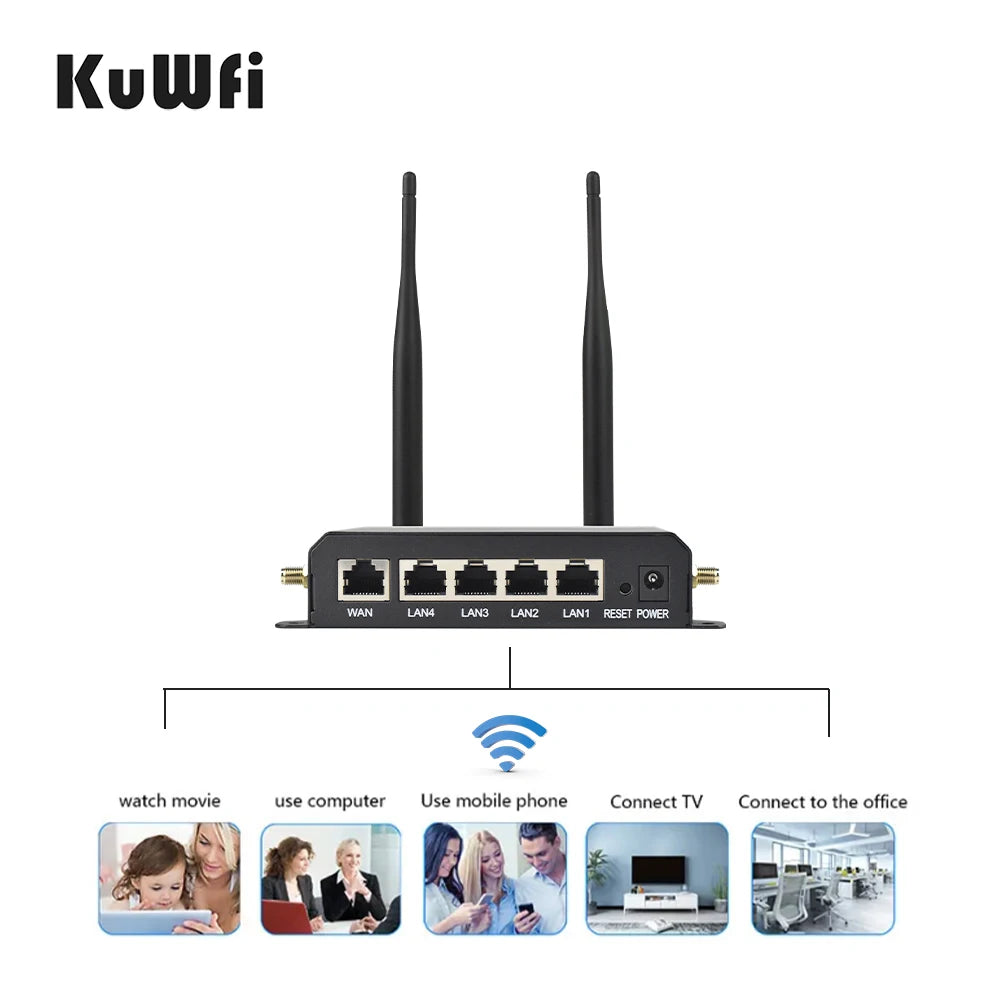

It can connect to mobile phones, televisions, cameras, computers, etc.Solve the problem that devices need network.

Specification:

CPU Chipset: MT7628
DDR: 64MB
FLASH: 8MB
4G Data Speed: DL up to 150Mbps, UL uo to 50Mbps
AP Mode 2.4G Wi-Fi Speed: Up to 300Mbps
Protocols Comply: IEEE802.11 b/g/n, IEEE802.3u
Frequency Range: 2.412 GHz ~ 2.472 GHz (Channel 1 ~13)
Wi-Fi Data Rate: MIMO 2*2 300Mbps 2.4G
Power Supply: DC 12V/1A
Ethernet Ports: 1x WAN + 4x LAN (10/100Mbps)
Reset Button: Restore factory default settings
LED Indicator: POWER, 4G, SYS, LAN1, LAN2, LAN3, LAN4, WAN
Modulation Type: OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Working Temperature: -20~50 ℃

Package Listing:

1 x WR181 4G Wireless Router
4x External Antennas
1x DC Power Adapter
1x English User Manual
